AZOOD DOB DOWN LIGHT
- Housing: Thermoplastic.
- Led: SINAN (SMD)
- CRI: Ra>80
- Power Factor: >0.5
- Driver: on board (DOB)
- Driver Efficiency: >90%
- Protection: IP20
- Surge Protection: 500V
- Electrical: 185-265V, 50/60Hz
- Storage Temperature: -20: +60ْ C
- Working Temperature: -20: +45ْ C
- Lifetime: 30,000H
- Additional information

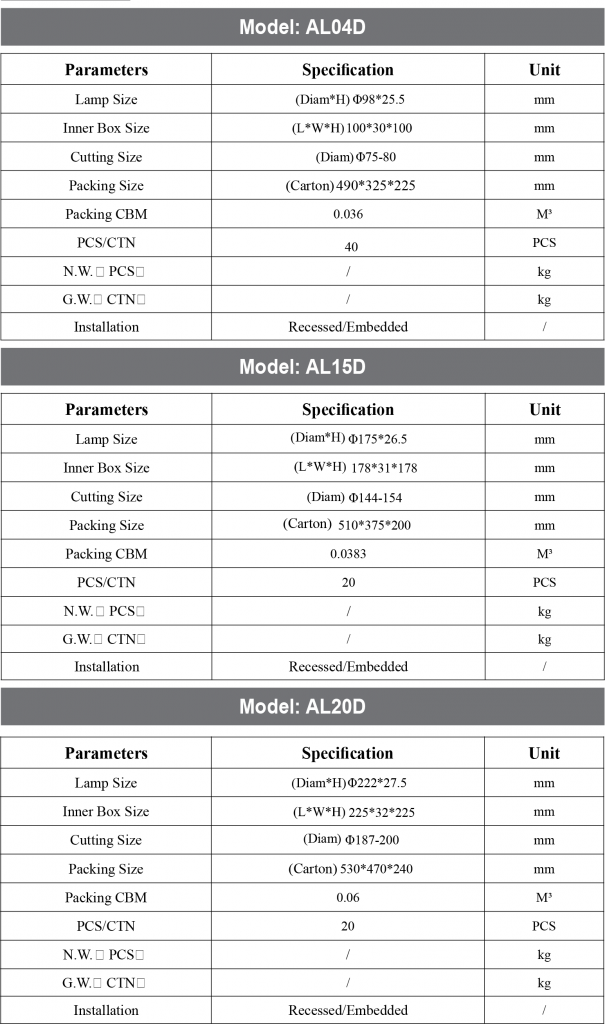

- TECHNICAL DATA
- DOWNLOADS
- PACKAGING INFORMATION
Additional information
| Color | Yellow |
|---|
Description
| Model | Watt | Voltage | Frequency | Current | Lumen | CRI | CCT | Lifetime | PF | Cut-out mm |
|---|---|---|---|---|---|---|---|---|---|---|
| AL04D-V00 | 3.5W | 185~265V~ | 50/60Hz | 0.04A | 240Lm | 80 | 6500K | 30000H | 0.5 | 76 mm |
| AL04D-V03 | 3.5W | 185~265V~ | 50/60Hz | 0.04A | 240Lm | 80 | 3000K | 30000H | 0.5 | 76 mm |
| AL15D-V00 | 15W | 185~265V~ | 50/60Hz | 0.14A | 1200Lm | 80 | 6500K | 30000H | 0.7 | 150 mm |
| AL15D-V04 | 15W | 185~265V~ | 50/60Hz | 0.14A | 1200Lm | 80 | 4000K | 30000H | 0.7 | 150 mm |
| AL20D-V00 | 20W | 185~265V~ | 50/60Hz | 0.26A | 1700Lm | 80 | 6500K | 30000H | 0.7 | 200 mm |
| AL20D-V04 | 20W | 185~265V~ | 50/60Hz | 0.26A | 1700Lm | 80 | 4000K | 30000H | 0.7 | 200 mm |
