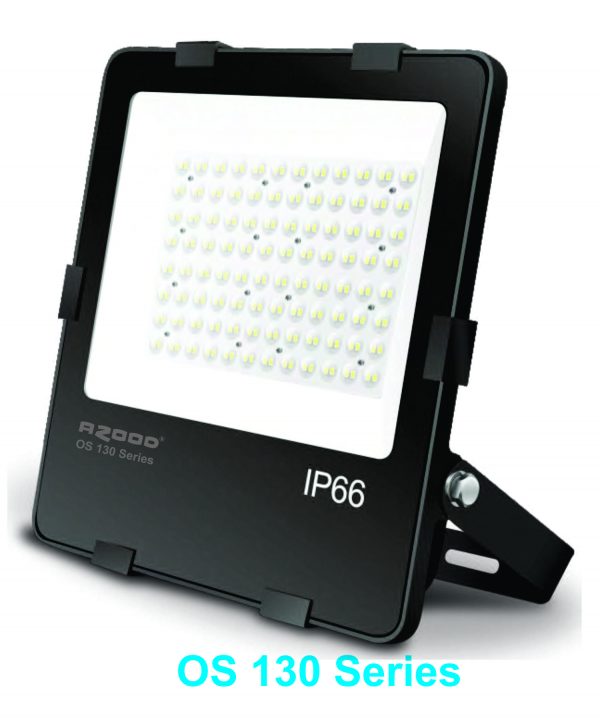

AZOOD FLOOD LED LIGHT OS 130 SERIES
- Housing: Die-cast Aluminum ADC12
- Thermal Conductivity: 96W/m·K
- Led: Osram 2835
- CRI: Ra>70 (80/90 for option)
- SDCM: <6
- Power Factor: >0.95
- THD: <15
- Driver: OSRAM P7 series
- Driver Efficiency: >90%
- Protection: OTP,OCP,OVP,SCP
- Surge Protection: 4KV
- Waterproof: IP66
- Impact Test: IK08
- Electrical: 220-240V, 50/60Hz
- Operating Temperature: -40~50ْ C
- TM21: L80B10<50,000H
- Lifetime: 50,000H
- Additional information
- TECHNICAL DATA
- DOWNLOADS
- PACKAGING INFORMATION
Additional information
| Watt | 100W, 150W, 200W |
|---|
Description
| item description | Model | Watt | Voltage | F | Lumen | Color Temp | IP | Dimention |
| AZOOD FLOOD LED light OS130 SERIES 100W 6500K | AL10F-0354-V60S | 100W | AC220-240V | 50/60Hz | 13000Lm | 6500K | IP66 | L354*W319*H53 MM |
| AZOOD FLOOD LED light OS130 SERIES 100W 4000K | AL10F-0354-V40S | 100W | AC220-240V | 50/60Hz | 13000Lm | 4000K | IP66 | L354*W319*H53 MM |
| AZOOD FLOOD LED light OS130 SERIES 150W 6500K | AL15F-0400-V60S | 150W | AC220-240V | 50/60Hz | 19500Lm | 6500K | IP66 | L400*W359*H63 MM |
| AZOOD FLOOD LED light OS130 SERIES 150W 4000K | AL15F-0400-V40S | 150W | AC220-240V | 50/60Hz | 19500Lm | 4000K | IP66 | L400*W359*H63 MM |
| AZOOD FLOOD LED light OS130 SERIES 200W 6500K | AL20F-0430-V60S | 200W | AC220-240V | 50/60Hz | 26000Lm | 6500K | IP66 | L430*W389*H63 MM |
| AZOOD FLOOD LED light OS130 SERIES 200W 4000K | AL20F-0430-V40S | 200W | AC220-240V | 50/60Hz | 26000Lm | 4000K | IP66 | L430*W389*H63 MM |
| Model | Outer Carton(mm) | QTY/CTN | NW/CTN | GW/CTN | ||
| AL10F-0354-V60S | 425 | 365 | 138 | 1 | 2.9 | 3.8 |
| AL15F-0400-V60S | 470 | 405 | 148 | 1 | 3.8 | 4.9 |
| AL20F-0430-V60S | 500 | 435 | 148 | 1 | 4.5 | 5.8 |
