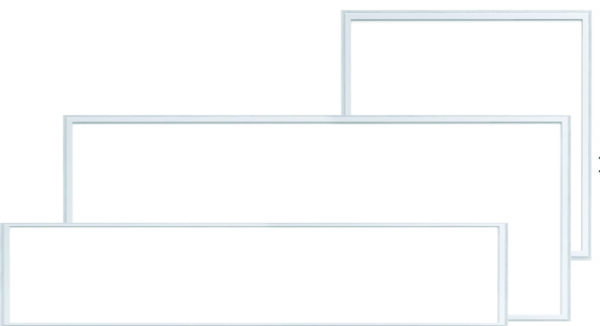

AZOOD LED BACKLIGHT PANEL CLASS A

AZOOD LED PANEL LIGHT

0 out of 5

  • Back-LIGHT LED Technology with high efficiency
  • Housing: Metal Back Cover High reflection PET laminating
  • Frame: Aluminum
  • CRI: Ra>80
  • Beam Angle: 120
  • Power Factor: > 0.95
  • Driver: Philips
  • Driver Efficiency: > 90%
  • Surge Protection: 2KV
  • Electrical: 220-240 V,  50/60Hz
  • Operating Temperature: -20~40C
  • Instant Full light
  • Lifetime: 50,000H
  • Switching Cycles: 20,000
  • Warranty:5 years

Product Family Data Sheet

Category:
Add to wishlist
Compare

Additional information

Watt

32W, 68W

Description

Model Watt Voltage Lumen Color Temp CRI PF IP Dimension
AL32P-0595-V600 34W 220~240V 4000 LM 6500K >80 0.95 IP20 L595*W595*H30 MM
AL32P-0595-V400 34W 220~240V 4000 LM 4000K >80 0.95 IP20 L595*W595*H30 MM
AL32P-0595-V300 34W 220~240V 4000 LM 3000K >80 0.95 IP20 L595*W595*H30 MM
AL32P-0295-V600 34W 220~240V 4000 LM 6500K >80 0.95 IP20 L1195*W295*H30 MM
AL32P-0295-V400 34W 220~240V 4000 LM 4000K >80 0.95 IP20 L1195*W295*H30 MM
AL32P-0295-V300 34W 220~240V 4000 LM 3000K >80 0.95 IP20 L1195*W295*H30 MM
AL64P-1195-V600 68W 220~240V 8000 LM 6500K >80 0.95 IP20 L1195*W595*H30 MM
AL64P-1195-V400 68W 220~240V 8000 LM 4000K >80 0.95 IP20 L1195*W595*H30 MM
AL64P-1195-V300 68W 220~240V 8000 LM 3000K >80 0.95 IP20 L1195*W595*H30 MM



Product data sheet

Model L*W*H(mm) Inner Carton (mm)
AL32P-0595-V600 L595* W595 *H30MM 665*40*655
AL32P-0595-V400 L595* W595 *H30MM 665*40*655
AL32P-0595-V300 L595* W595 *H30MM 665*40*655
AL32P-0295-V600 L1195*W295*H30MM 655*40*355
AL32P-0295-V400 L1195*W295*H30MM 655*40*355
AL32P-0295-V300 L1195*W295*H30MM 655*40*355
AL64P-1195-V600 L1195*W595*H30MM 1255*40*655
AL64P-1195-V400 L1195*W595*H30MM 1255*40*655
AL64P-1195-V300 L1195*W595*H30MM 1255*40*655
Item Description Model Brand Name L*W*H Unit GTIN Barcode
AZOOD LED BACKLIGHT LIGHT 34W 60x60cm CCT6500K AL32P-0595-V600 Azood 665*40*655 Piece 6287025470238
AZOOD LED BACKLIGHT LIGHT 34W 60x60cm CCT4000K AL32P-0595-V400 Azood 665*40*655 Piece 6287025470245
AZOOD LED BACKLIGHT LIGHT 34W 60x60cm CCT3000K AL32P-0595-V300 Azood 665*40*655 Piece 6287025470252
AZOOD LED BACKLIGHT LIGHT 34W 30x60cm CCT6500K AL32P-0295-V600 Azood 655*40*355 Piece 6287025470269
AZOOD LED BACKLIGHT LIGHT 34W 30x60cm CCT4000K AL32P-0295-V400 Azood 655*40*355 Piece 6287025470276
AZOOD LED BACKLIGHT LIGHT 34W 30x60cm CCT3000K AL32P-0595-V300 Azood 655*40*355 Piece 6287025470283
AZOOD LED BACKLIGHT LIGHT 68W 120x60cm CCT3000K AL64P-1195-V600 Azood 1255*40*655 Piece 6287025470290
AZOOD LED BACKLIGHT LIGHT 68W 120x60cm CCT3000K AL64P-1195-V400 Azood 1255*40*655 Piece 6287025470306
AZOOD LED BACKLIGHT LIGHT 68W 120x60cm CCT3000K AL64P-1195-V300 Azood 1255*40*655 Piece 6287025470313
