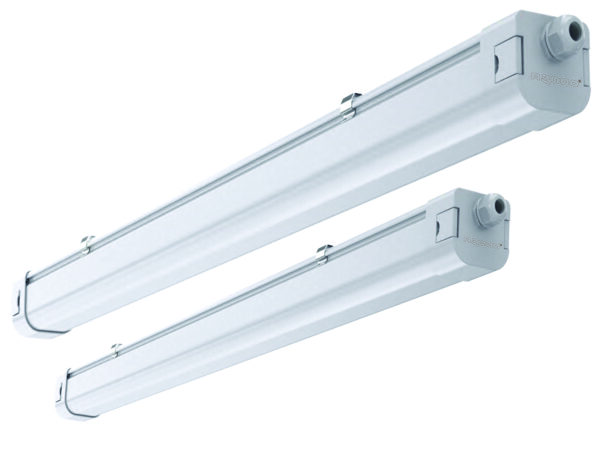

AZOOD LED Tri-PROOF
- Housing: Plastic With Aluminum Inside
- Thermal Conductivity: 226 W/m-k
- Led: Bridgelux
- CRI: Ra>80
- SDCM: <6
- Power Factor: >0.95
- THD: <15
- Driver: OSRAM
- Driver Efficiency: >90%
- Protection: OTP, OCP, OVP, SCP
- Surge Protection:2KV
- Waterproof: IP65
- Impact Test: IK08
- Electrical: 220-240V, 50/60Hz
- Operating Temperature: -20~40ْ C
- TM21: L80B10>50,000H
- Lifetime: 50,000H
- Additional information
- TECHNICAL DATA
- DOWNLOADS
- PACKAGING INFORMATION
- Ordering Information
Additional information
| Watt | 20W, 40W, 58W |
|---|
Description
| Model | Watt | Voltage | Lumen | Color Temp | CRI | PF | IP | Ring Dimension / MM |
| AL20T-0060-V600 | 20W | 220-240V | 2800LM | 6500K | >80 | 0.95 | IP65 | L659*W74*H64MM |
| AL20T-0060-V400 | 20W | 220-240V | 2800LM | 4000K | >80 | 0.95 | IP65 | L659*W74*H64MM |
| AL20T-0060-V300 | 20W | 220-240V | 2800LM | 3000K | >80 | 0.95 | IP65 | L659*W74*H64MM |
| AL40T-0120-V600 | 40W | 220-240V | 5600LM | 6500K | >80 | 0.95 | IP65 | L1221*W74*H64MM |
| AL40T-0120-V400 | 40W | 220-240V | 5600LM | 4000K | >80 | 0.95 | IP65 | L1221*W74*H64MM |
| AL40T-0120-V300 | 40W | 220-240V | 5600LM | 3000K | >80 | 0.95 | IP65 | L1221*W74*H64MM |
| AL58T-0150-V600 | 58W | 220-240V | 8120LM | 6500K | >80 | 0.95 | IP65 | L1502*W74*H64MM |
| AL58T-0150-V400 | 58W | 220-240V | 8120LM | 4000K | >80 | 0.95 | IP65 | L1502*W74*H64MM |
| AL58T-0150-V300 | 58W | 220-240V | 8120LM | 3000K | >80 | 0.95 | IP65 | L1502*W74*H64MM |
| Model | L*W*H(mm) | Inner Carton (mm) | Qty. Inner CTN | Outer Carton(mm) | Qty/Outer CTN | N Weight / CTN | G Weight / CTN |
| AL20T-0060-V600 | 659*74*64 | 720*80*70 | 1 | 735*260*155 | 6 | 3.5 | 4.5 |
| AL20T-0060-V400 | 659*74*64 | 720*80*70 | 1 | 735*260*155 | 6 | 3.5 | 4.5 |
| AL20T-0060-V300 | 659*74*64 | 720*80*70 | 1 | 735*260*155 | 6 | 3.5 | 4.5 |
| AL40T-0120-V600 | 1280*74*64 | 1280*80*70 | 1 | 1295*260*155 | 6 | 9 | 10.5 |
| AL40T-0120-V400 | 1280*74*64 | 1280*80*70 | 1 | 1295*260*155 | 6 | 9 | 10.5 |
| AL40T-0120-V300 | 1280*74*64 | 1280*80*70 | 1 | 1295*260*155 | 6 | 9 | 10.5 |
| AL58T-0150-V600 | 1560*74*64 | 1580*80*70 | 1 | 1575*260*155 | 6 | 9.5 | 11.5 |
| AL58T-0150-V400 | 1560*74*64 | 1580*80*70 | 1 | 1575*260*155 | 6 | 9.5 | 11.5 |
| AL58T-0150-V300 | 1560*74*64 | 1580*80*70 | 1 | 1575*260*155 | 6 | 9.5 | 11.5 |
| Item Description | Model | Brand Name | L*W*H(mm) | Unit | GTIN Barcode |
| AZOOD LED Tri-PROOF 20w L 60 cm CCT 6500K | AL20T-0060-V600 | AZOOD | 659*74*64 | Piece | 6287025470146 |
| AZOOD LED Tri-PROOF 20w L 60 cm CCT 4000K | AL20T-0060-V400 | AZOOD | 659*74*64 | Piece | 6287025470153 |
| AZOOD LED Tri-PROOF 20w L 60 cm CCT 3000K | AL20T-0060-V300 | AZOOD | 659*74*64 | Piece | 6287025470160 |
| AZOOD LED Tri-PROOF 40w L 120 cm CCT 6500K | AL40T-0120-V600 | AZOOD | 1280*74*64 | Piece | 6287025470177 |
| AZOOD LED Tri-PROOF 40w L 120 cm CCT 4000K | AL40T-0120-V400 | AZOOD | 1280*74*64 | Piece | 6287025470184 |
| AZOOD LED Tri-PROOF 40w L 120 cm CCT 3000K | AL40T-0120-V300 | AZOOD | 1280*74*64 | Piece | 6287025470191 |
| AZOOD LED Tri-PROOF 58w L 150 cm CCT 6500 | AL58T-0150-V600 | AZOOD | 1560*74*64 | Piece | 6287025470207 |
| AZOOD LED Tri-PROOF 58w L 150 cm CCT 4000K | AL58T-0150-V400 | AZOOD | 1560*74*64 | Piece | 6287025470214 |
| AZOOD LED Tri-PROOF 58w L 150 cm CCT 3000K | AL58T-0150-V300 | AZOOD | 1560*74*64 | Piece | 6287025470221 |
