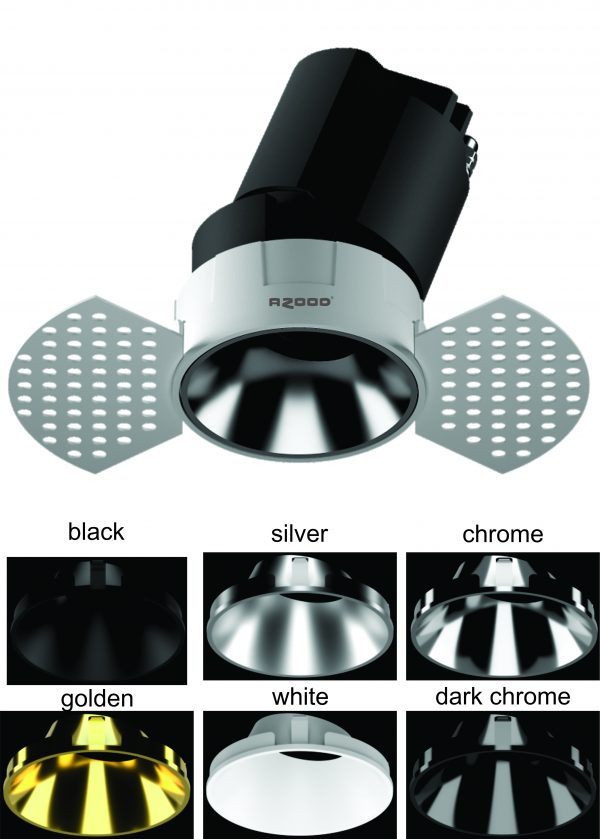

AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT
- Hight Performance COB
- Housing: Aluminum
- Thermal Conductivity: 226W/m·K
- Led: CREE
- CRI: Ra>80
- Power Factor: >0.90
- Driver: OSRAM
- Driver Efficiency: >90%
- Surge Protection: 2.5KV
- Electrical: AC110-240V, 50/60Hz
- Operating Temperature: -20~40ْ C
- TM21: L80B10<50,000H
- Lifetime: 50,000H
- Warranty:5 years
- TECHNICAL DATA
- DOWNLOADS
Description
| Item Description | Model | Watt | Lumen | Color Temp | Beam Angel | PF | IP | Dimension | Height | Cut-out |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 5W | AL005-RTLS-V6CO | 5W | 400 LM | 6000K | 60° | 0.9 | 20 | Ø55×67.5MM | 67.5MM | Ø55MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 5W | AL005-RTLS-V4CO | 5W | 400 LM | 4000K | 60° | 0.9 | 20 | Ø55×67.5MM | 67.5MM | Ø55MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 5W | AL005-RTLS-V3CO | 5W | 400 LM | 3000K | 60° | 0.9 | 20 | Ø55×67.5MM | 67.5MM | Ø55MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 7W | AL007-RTLS-V6CO | 7W | 600 LM | 6000K | 60° | 0.9 | 20 | Ø52.9×79.1MM | 79.1MM | Ø57MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 7W | AL007-RTLS-V4CO | 7W | 600 LM | 4000K | 60° | 0.9 | 20 | Ø52.9×79.1MM | 79.1MM | Ø57MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 7W | AL007-RTLS-V3CO | 7W | 600 LM | 3000K | 60° | 0.9 | 20 | Ø52.9×79.1MM | 79.1MM | Ø57MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 10W | AL010-RTLS-V6CO | 10W | 800 LM | 6000K | 60° | 0.9 | 20 | Ø52.9×79.1MM | 79.1MM | Ø57MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 10W | AL010-RTLS-V4CO | 10W | 800 LM | 4000K | 60° | 0.9 | 20 | Ø52.9×79.1MM | 79.1MM | Ø57MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 10W | AL010-RTLS-V3CO | 10W | 800 LM | 3000K | 60° | 0.9 | 20 | Ø52.9×79.1MM | 79.1MM | Ø57MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 12W | AL012-RTLS-V6CO | 12W | 900 LM | 6000K | 60° | 0.9 | 20 | Ø72.4×100.5MM | 100.5MM | Ø77MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 12W | AL012-RTLS-V4CO | 12W | 900 LM | 4000K | 60° | 0.9 | 20 | Ø72.4×100.5MM | 100.5MM | Ø77MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 12W | AL012-RTLS-V3CO | 12W | 900 LM | 3000K | 60° | 0.9 | 20 | Ø72.4×100.5MM | 100.5MM | Ø77MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 20W | AL020-RTLS-V3CO | 20W | 1600LM | 6000K | 60° | 0.9 | 20 | Ø91.5×121.5MM | 121.5MM | Ø97MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 20W | AL020-RTLS-V3CO | 20W | 1600LM | 4000K | 60° | 0.9 | 20 | Ø91.5×121.5MM | 121.5MM | Ø97MM |
| AZOOD RECESSED ROUND TRIMLESS LED DOWNLIGHT 20W | AL020-RTLS-V3CO | 20W | 1600LM | 3000K | 60° | 0.9 | 20 | Ø91.5×121.5MM | 121.5MM | Ø97MM |
