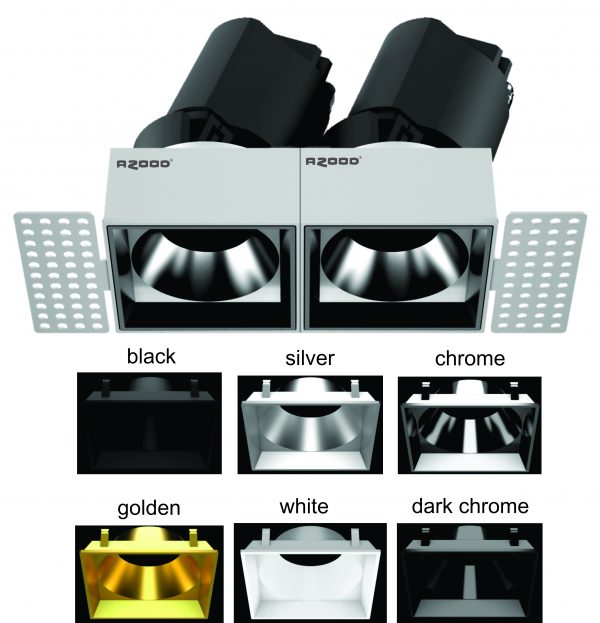

AZOOD RECESSED SQUARE TRIMLESS LED DOWNLIGHT
- Hight Performance COB
- Housing: Aluminum
- Thermal Conductivity: 226W/m·K
- Led: CREE
- CRI: Ra>80
- Power Factor: >0.90
- Driver: OSRAM
- Driver Efficiency: >90%
- Surge Protection: 2.5 KV
- Electrical: AC110-240V, 50/60Hz
- Operating Temperature: -20~40ْ C
- TM21: L80B10<50,000H
- Lifetime: 50,000H
- Warranty:5 years
- TECHNICAL DATA
- DOWNLOADS
Description
| Model | Watt | Lumen | Color Temp | Beam Angle | PF | Dimension | Height | Cut-out |
| AL207-RTLS-V6CO | 2x7W | 2X 600 LM | 6000K | 60° | 0.9 | 107.6×53.8×87.5MM | 87.5MM | 111*57.5 MM |
| AL207-RTLS-V4CO | 2x7W | 2X 600 LM | 4000K | 60° | 0.9 | 107.6×53.8×87.5MM | 87.5MM | 111*57.5 MM |
| AL207-RTLS-V3CO | 2x7W | 2X 600 LM | 3000K | 60° | 0.9 | 107.6×53.8×87.5MM | 87.5MM | 111*57.5 MM |
| AL212-RTLS-V6CO | 2X12W | 2X 950LM | 6000K | 60° | 0.9 | 147×73.5×111.8MM | 111.8MM | 152.5*77 MM |
| AL212-RTLS-V4CO | 2X12W | 2X 950LM | 4000K | 60° | 0.9 | 147×73.5×111.8MM | 111.8MM | 152.5*77 MM |
| AL212-RTLS-V3CO | 2X12W | 2X 950LM | 3000K | 60° | 0.9 | 147×73.5×111.8MM | 111.8MM | 152.5*77 MM |
| AL220-RTLS-V3CO | 2X20W | 2X1600LM | 6000K | 60° | 0.9 | 187.2×93.6×137.5MM | 137.5MM | 192.5×97 MM |
| AL220-RTLS-V3CO | 2X20W | 2X1600LM | 4000K | 60° | 0.9 | 187.2×93.6×137.5MM | 137.5MM | 192.5×97 MM |
| AL220-RTLS-V3CO | 2X20W | 2X1600LM | 3000K | 60° | 0.9 | 187.2×93.6×137.5MM | 137.5MM | 192.5×97 MM |
