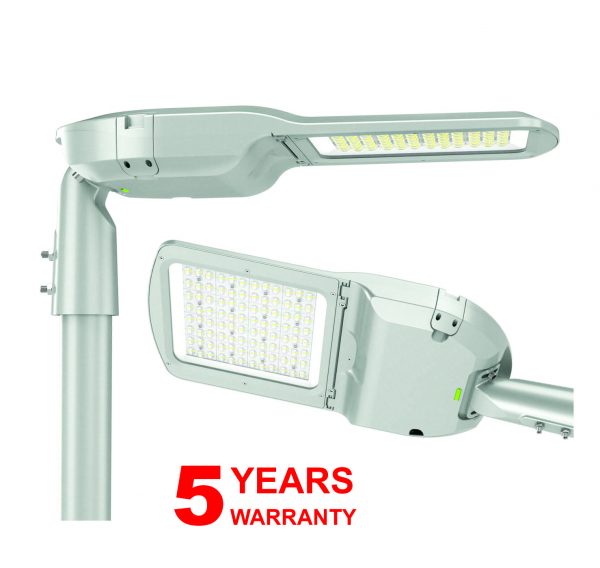

AZOOD Street LED light CM SERIES

AZOOD FLOOD LED LIGHT PS 150 Series
AZOOD Led Sport Field Light
0 out of 5

  • Housing: Die-cast Aluminum
  • Thermal Conductivity: 96W/m·K
  • Led: CREE
  • CRI: Ra>70
  • SDCM: <6
  • Power Factor: >0.95
  • THD: <15
  • Driver: Meanwell XLG
  • Driver Efficiency: >90%
  • Protection: OTP,OCP,OVP,SCP
  • Surge Protection: 6KV
  • Waterproof: IP66
  • Impact Test: IK08
  • Electrical: 100-277V, 50/60Hz
  • Operating Temperature: -40~50ْ C
  • TM21: L90B10<50,000H
  • Lifetime: 50,000H

Product Family Data Sheet

Categories: ,
Add to wishlist
Compare

Additional information

Watt

100W, 150W, 200W

Description

Model Watt Voltage F Lumen Color Temp CRI PF IP Dimension
AL06S-0568-V4CM 60W AC100-277V 50/60Hz 9000Lm 4000K >70 0.95 IP66 L568*W200*H109 MM
AL08S-0613-V4CM 80W AC100-277V 50/60Hz 12000Lm 4000K >70 0.95 IP66 L613*W240*H109 MM
AL10S-0613-V4CM 100W AC100-277V 50/60Hz 15000Lm 4000K >70 0.95 IP66 L613*W240*H109 MM
AL15S-0683-V4CM 150W AC100-277V 50/60Hz 21000Lm 4000K >70 0.95 IP66 L683*W260*H109 MM
AL20S-0693-V4CM 200W AC100-277V 50/60Hz 28000Lm 4000K >70 0.95 IP66 L693*W300*H109 MM
AL25S-0693-V4CM 250W AC100-277V 50/60Hz 37500Lm 4000K >70 0.95 IP66 L693*W300*H109 MM



Product data sheet

Model Dimention Outer Carton(mm) QTY/Outer CTN Luminaire
L W H NW(KG) GW(KG)
AL08S-0613-V4CM 586*240*109 666 295 150 1 4.57 5.27
AL10S-0613-V4CM 586*240*109 666 295 150 1 4.57 5.27
AL15S-0683-V4CM 683*260*109 736 315 150 1 5.77 6.56
AL20S-0693-V4CM 693*300*109 747 355 150 1 6.04 6.92
AL25S-0693-V4CM 693*300*109 747 355 150 1 6.04 6.92
