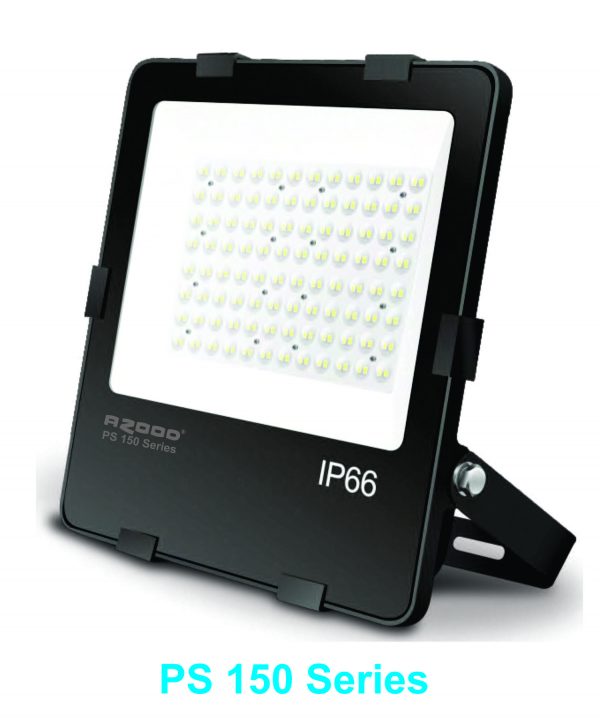

AZOOD FLOOD LED LIGHT PS 150 Series
- Housing: Die-cast Aluminum ADC12
- Thermal Conductivity: 96W/m·K
- Led: Philips
- CRI: Ra>70 (80/90 for option)
- SDCM: <6
- Power Factor: >0.95
- THD: <15
- Driver: Sosen
- Driver Efficiency: >90%
- Protection: OTP,OCP,OVP,SCP
- Surge Protection: 4KV
- Waterproof: IP66
- Impact Test: IK08
- Electrical: 100-277V, 50/60Hz
- Operating Temperature: -40~50ْ C
- TM21: L80B10<50,000H
- Lifetime: 50,000H
- Additional information
- TECHNICAL DATA
- DOWNLOADS
- PACKAGING INFORMATION
Additional information
| Watt | 100W, 150W, 200W |
|---|
Description
| item description | Model | Watt | Voltage | F | Lumen | Color Temp | PF | IP | Dimension |
| AZOOD FLOOD LED light PS150 SERIES 100W 6500K | AL10F-0354-V6PS | 100W | AC100-277V | 50/60Hz | 15000Lm | 6500K | 1 | IP66 | L354*W319*H53 MM |
| AZOOD FLOOD LED light PS150 SERIES 100W 4000K | AL10F-0354-V4PS | 100W | AC100-277V | 50/60Hz | 15000Lm | 4000K | 1 | IP66 | L354*W319*H53 MM |
| AZOOD FLOOD LED light PS150 SERIES 150W 6500K | AL15F-0400-V6PS | 150W | AC100-277V | 50/60Hz | 22500Lm | 6500K | 1 | IP66 | L400*W359*H63 MM |
| AZOOD FLOOD LED light PS150 SERIES 150W 4000K | AL15F-0400-V4PS | 150W | AC100-277V | 50/60Hz | 22500Lm | 4000K | 1 | IP66 | L400*W359*H63 MM |
| AZOOD FLOOD LED light PS150 SERIES 200W 6500K | AL20F-0430-V6PS | 200W | AC100-277V | 50/60Hz | 30000Lm | 6500K | 1 | IP66 | L430*W389*H63 MM |
| AZOOD FLOOD LED light PS150 SERIES 200W 4000K | AL20F-0430-V4PS | 200W | AC100-277V | 50/60Hz | 30000Lm | 4000K | 1 | IP66 | L430*W389*H63 MM |
| Model | Outer Carton(mm) | QTY/CTN | NW/CTN | GW/CTN | ||
| AL10F-0354-V60S | 425 | 365 | 138 | 1 | 2.9 | 3.8 |
| AL15F-0400-V60S | 470 | 405 | 148 | 1 | 3.8 | 4.9 |
| AL20F-0430-V60S | 500 | 435 | 148 | 1 | 4.5 | 5.8 |
