AZOOD LED DOB DOWNLIGHT SURFACE
- Housing: Thermoplastic.
- Led: (SMD)
- CRI: Ra>80
- Power Factor: >0.5
- Driver: on board (DOB)
- Driver Efficiency: >90%
- Protection: IP65
- Surge Protection: 500V
- Electrical: 185-265V, 50/60Hz
- Storage Temperature: -20: +60ْ C
- Working Temperature: -20: +45ْ C
- Lifetime: 50,000H
- Additional information
- TECHNICAL DATA
- DOWNLOADS

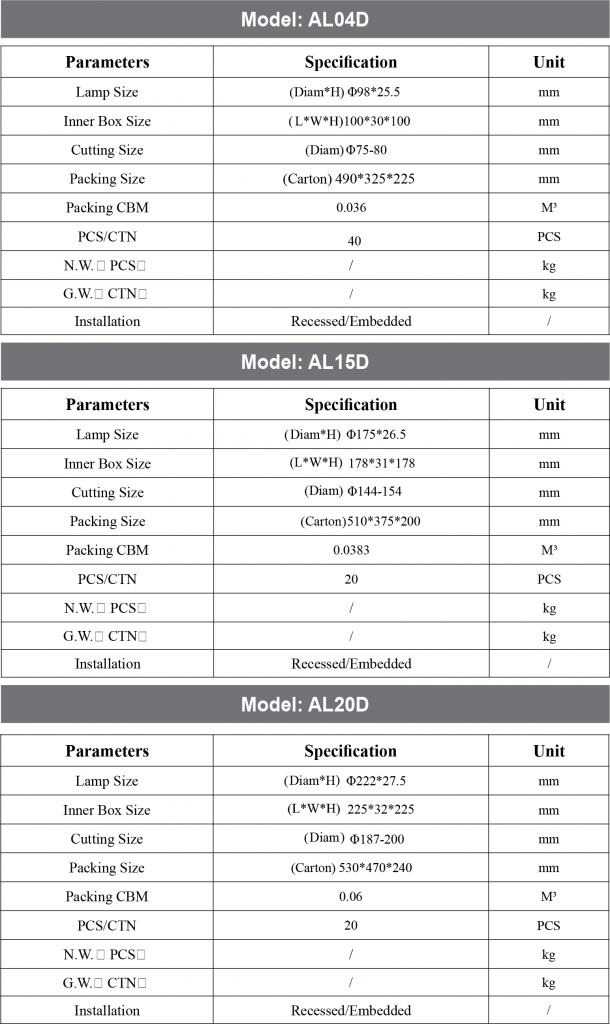

- PACKAGING INFORMATION
Additional information
| Color | Yellow |
|---|
Description
| Model | Watt | Voltage | Frequency | Lumen | Color Temp | CRI | PF | IP | Ring Dimention / MM |
| AL12P-S150-V600 | 12W | 185~265V | 50/60Hz | 1332Lm | 6500K | >80 | 0.49 | IP65 | Φ150 mm |
| AL12P-S150-V400 | 12W | 185~265V | 50/60Hz | 1332Lm | 4000K | >80 | 0.49 | IP65 | Φ150 mm |
| AL12P-S150-V300 | 12W | 185~265V | 50/60Hz | 1332Lm | 3000K | >80 | 0.49 | IP65 | Φ150 mm |
| AL20P-S200-V600 | 20W | 185~265V | 50/60Hz | 2204Lm | 6500K | >80 | 0.49 | IP65 | Φ200 mm |
| AL20P-S200-V400 | 20W | 185~265V | 50/60Hz | 2204Lm | 4000K | >80 | 0.49 | IP65 | Φ200 mm |
| AL20P-S200-V300 | 20W | 185~265V | 50/60Hz | 2204Lm | 3000K | >80 | 0.49 | IP65 | Φ200 mm |
